LF11 Mortar Spraying Machine SPECS | |
| Name: | LF11 Mortar Spraying Machine |
| Max. horizontal conveying distance | 40 m |
| Max. vertical conveying distance | 20 m |
| Hopper Capacity | 80L |
| Machinery Test Report | Provided |
| Warranty | 1 Year |
| Core Components | Pump, Motor |
| UNIQUE SELLING POINT | Energy Saving |
| Video outgoing-inspection | Provided |
| Color | Yellow |
| Brand Name | Zelv |
| Power | 220V/380V |
| Place of Origin | Guangdong, China |
| Weight | 320 kg |
| Application | high requirements for surface flatness and quality |
| Dimension(L*W*H) | 1200*600*1000 mm |
| Motor Power | 7.5KW |
| Working Pressure | 3 MPa |
| Mortar Delivery Capacity | 3m³/h |
| Pipe Inner Diameter | 32mm |
| Maximum Passing Particle Size | 8mm |
| Mix ratio (water:cement:sand...) | 0.7-1:1:3 |
| Pump type | screw pump, feeds continuously without any pulsation. |
| Applicable materials | Putty powder, coatings, emulsion paint, cement mortar |
| Advantage | Stable flow of 3 m³/h, spraying evenly and saving materials |
Product Details
Product Descriptions

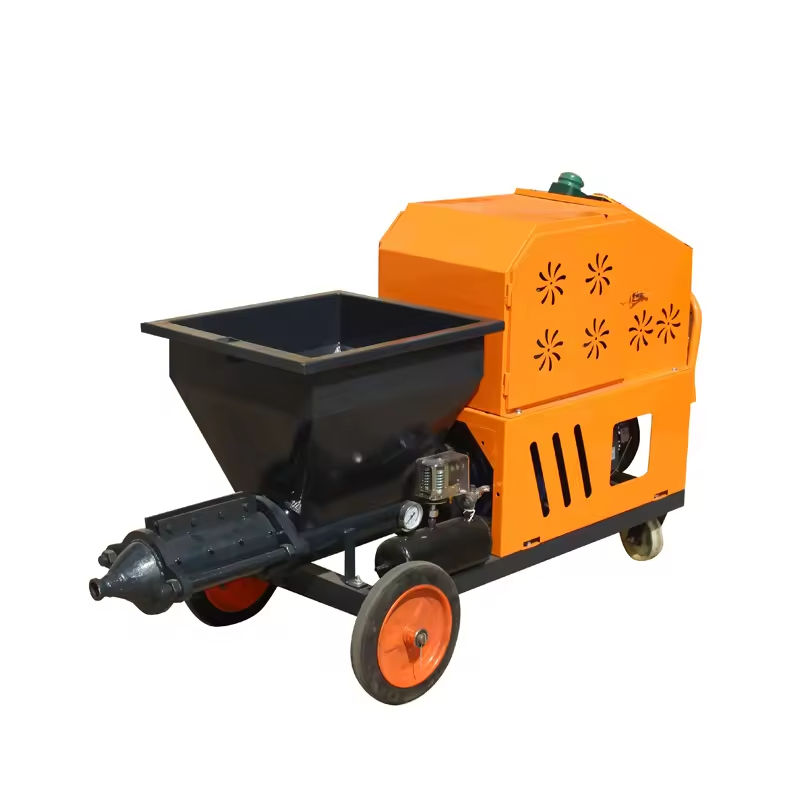

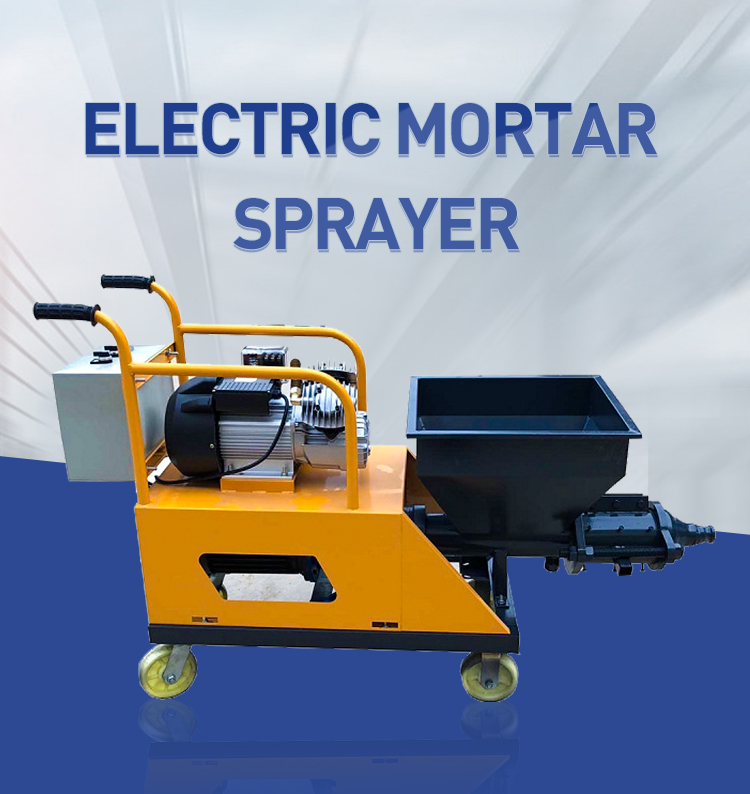

This electric screw mortar sprayer is a high-performance construction equipment designed for efficient and high-quality mortar application.
With a delivery capacity of 50L/h and maximum pressure of 3MPa, it combines stable pumping, uniform spraying, and wide adaptability,
making it an ideal choice for various building projects. Whether for internal/external wall plastering, thermal insulation mortar spraying,
or small-scale infrastructure support
Application Scenarios
1.Plastering of internal and external walls for residential buildings, villas, and commercial complexes
2.Spraying of thermal insulation mortar, anti-crack mortar, and putty
3.Renovation and maintenance of old buildings, basements, and garages
4.Slope protection, small tunnel, and culvert support spraying 5.Construction of industrial workshops, warehouses, and public facilities
